ISR UAV

SkyRanger® R70

The future of multi-mission small UAS

Learn more

SkyRanger R70 is developed and manufactured by Teledyne FLIR, a global leader in advanced unmanned systems and sensing technologies. We provide integration, support, and operational expertise for the platform.

Operational Capabilities

Optimized for mission endurance, speed, and rapid field deployment across diverse environments.

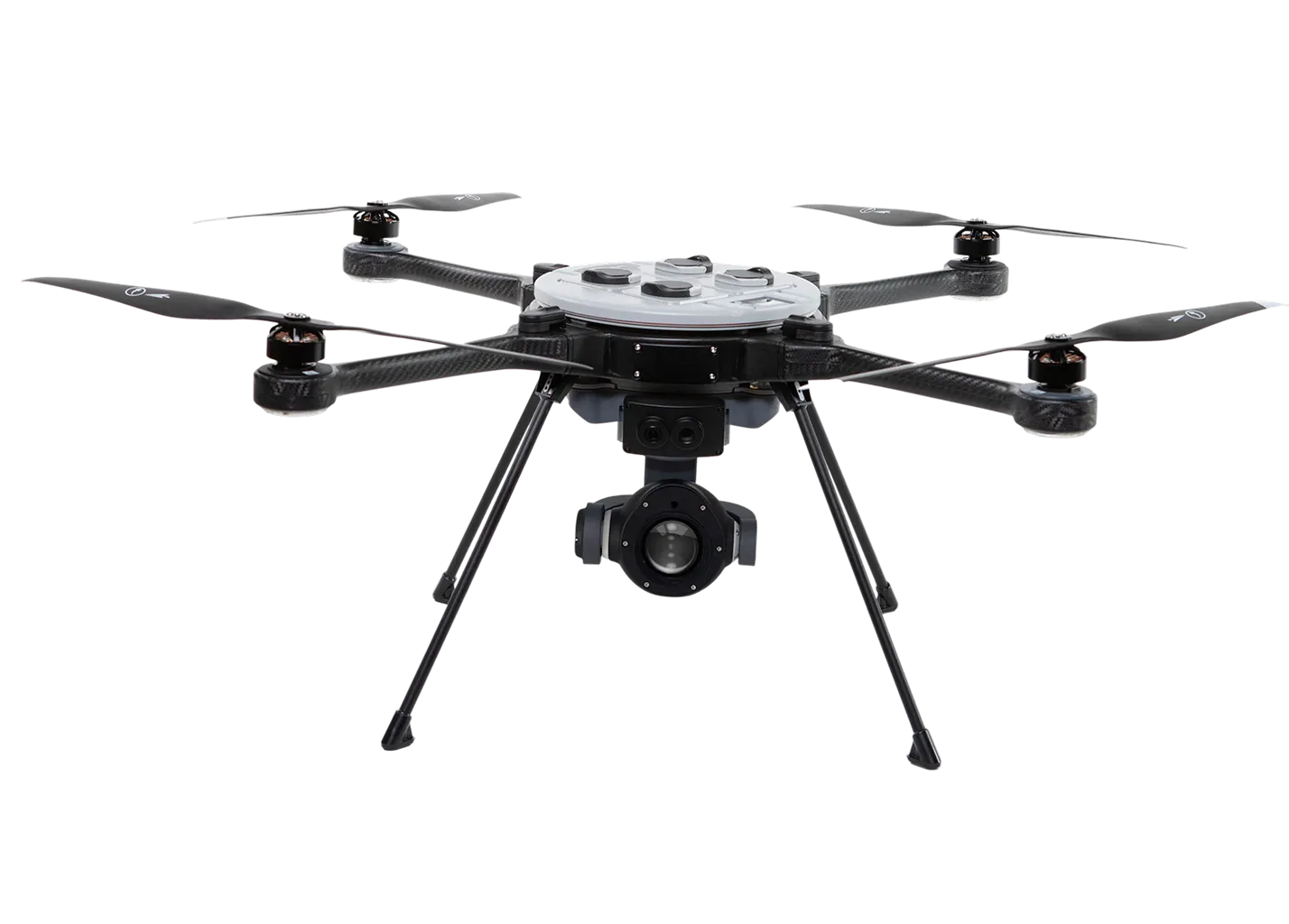

Professional quadcopter drone with four propellers, carbon fiber arms, and a mounted camera underneath.
59 min
Max flight time
3.5 kg
Carry / Drop
50 km/h
Max flight speed
3 min
Deployment time
8 km
Data link range
−20 °C
to +50 °C
Temperature range

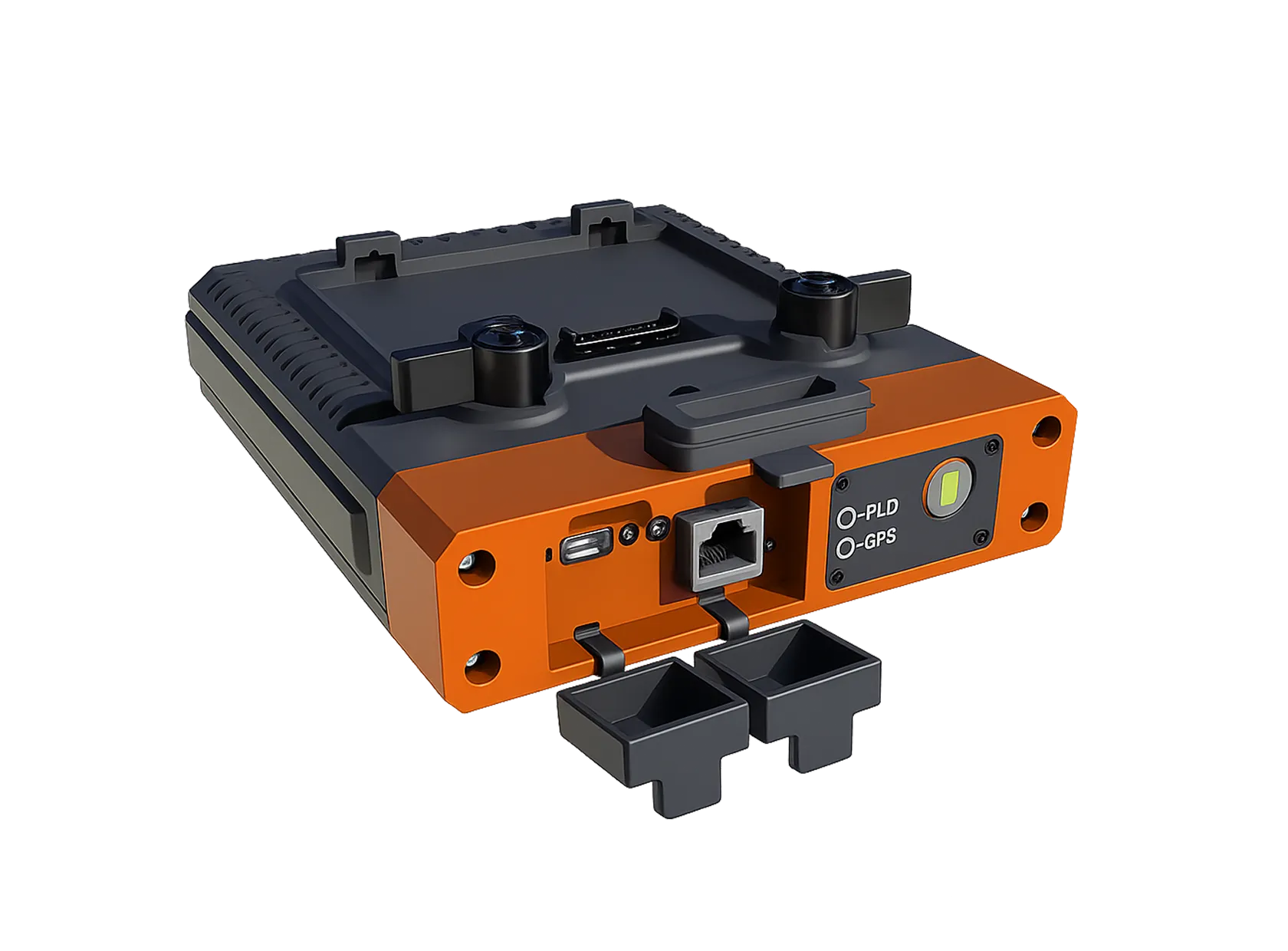

Compact black and orange device with ports labeled PLD and GPS and protective covers open.
Modular Payload System
Integrated Control Interface
Rugged Deployment Kit

RangerPortTM

Payload Flexibility Unleashed

RangerPort™ enables the use of third-party payloads in a standalone manner by replicating existing craft PDK resources, including network, GPS, and serial-based communications.
This allows the use of third-party payloads across a broad range of applications, from static deployments to mobile vehicle-based setups or integration into other robotic platforms.

Mission-ready payload flexibility without compromise

Designed for true multi-mission adaptability, Skyranger R70 supports advanced payloads up to 3.5 kg, enabling operators to deploy a wide range of sensors and tools without sacrificing flight performance.
From ISR to specialized operational tasks, this payload capacity empowers both end users and system integrators to tailor the platform to evolving mission requirements—turning one aircraft into a scalable, future-ready solution.
StormCaster-T
High-resolution thermal module built for dependable detection in low-visibility conditions.
HDZoom30
High-resolution EO camera with powerful zoom for long-range observation and precise target identification.
EO/IR MK-II
Dual-spectrum electro-optical and thermal payload for reliable day-and-night operational awareness.
HD40-XV
Long-range zoom camera optimized for surveillance and precision visual acquisition.

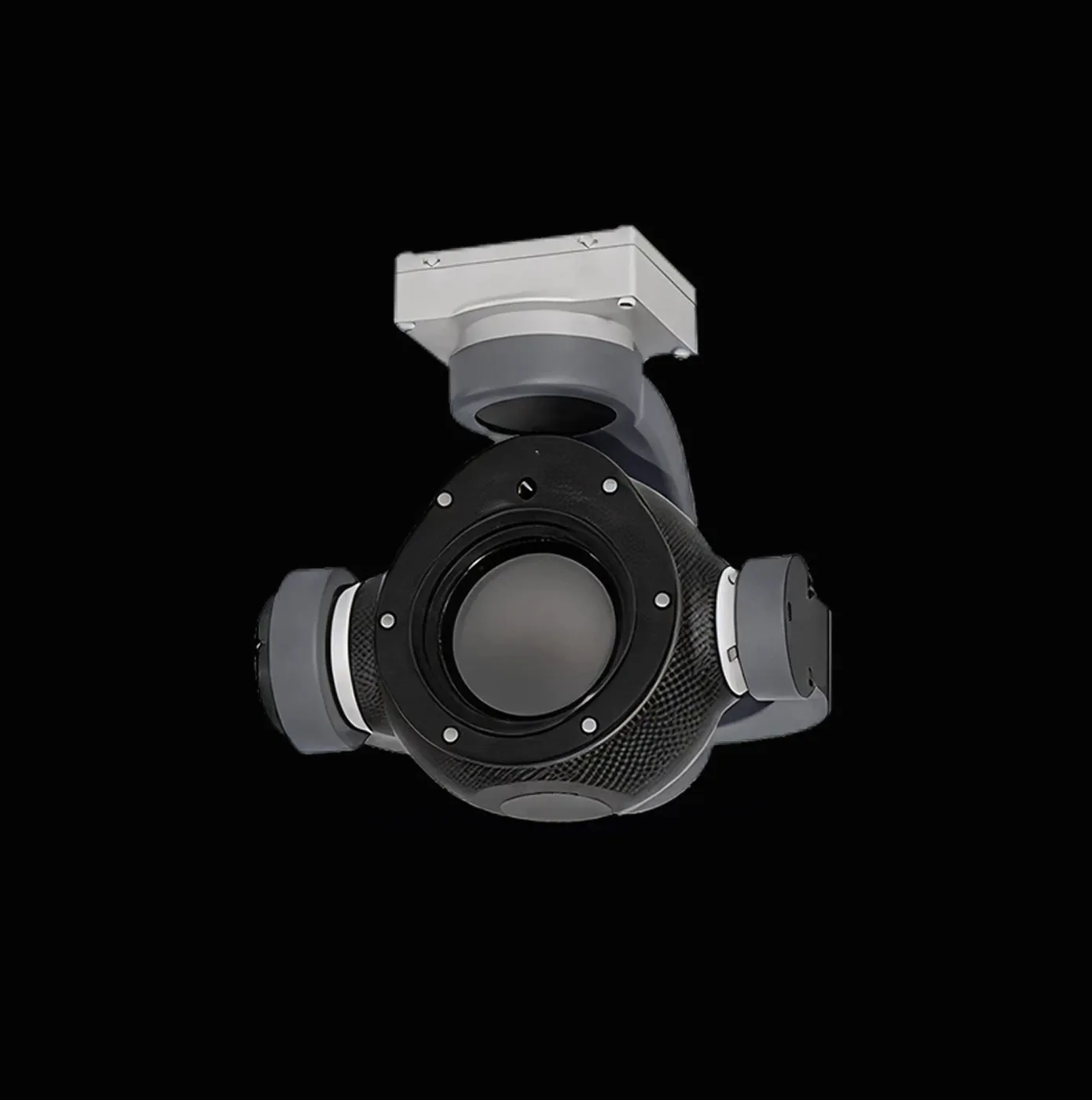

Black and gray mechanical gimbal camera mount with circular central lens area on a black background.
Still Image Resolution: 640×512
Zoom: 5× opt / 15× dig
Video: 640×512@60
Field of View: StormCaster-T: 31°–6° (2° dig)

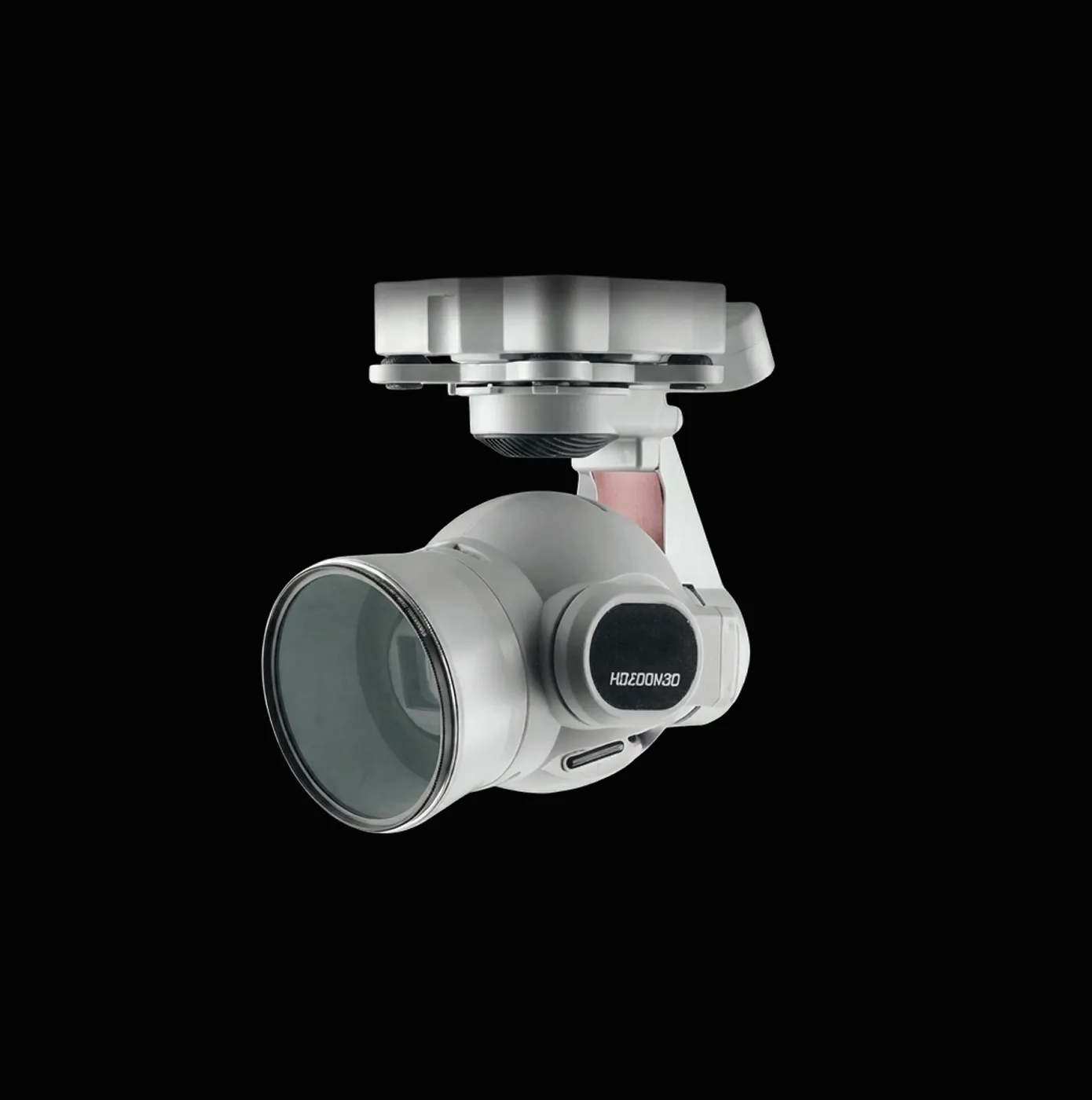

Close-up of a white drone camera gimbal with HD zoom 30 label on black background.
Still Image Resolution: 20 MP (5184×3888)
Zoom: 30× / 60×
Field of View: 68.6°–2.6° (1.3° dig)
Video: 1080p60

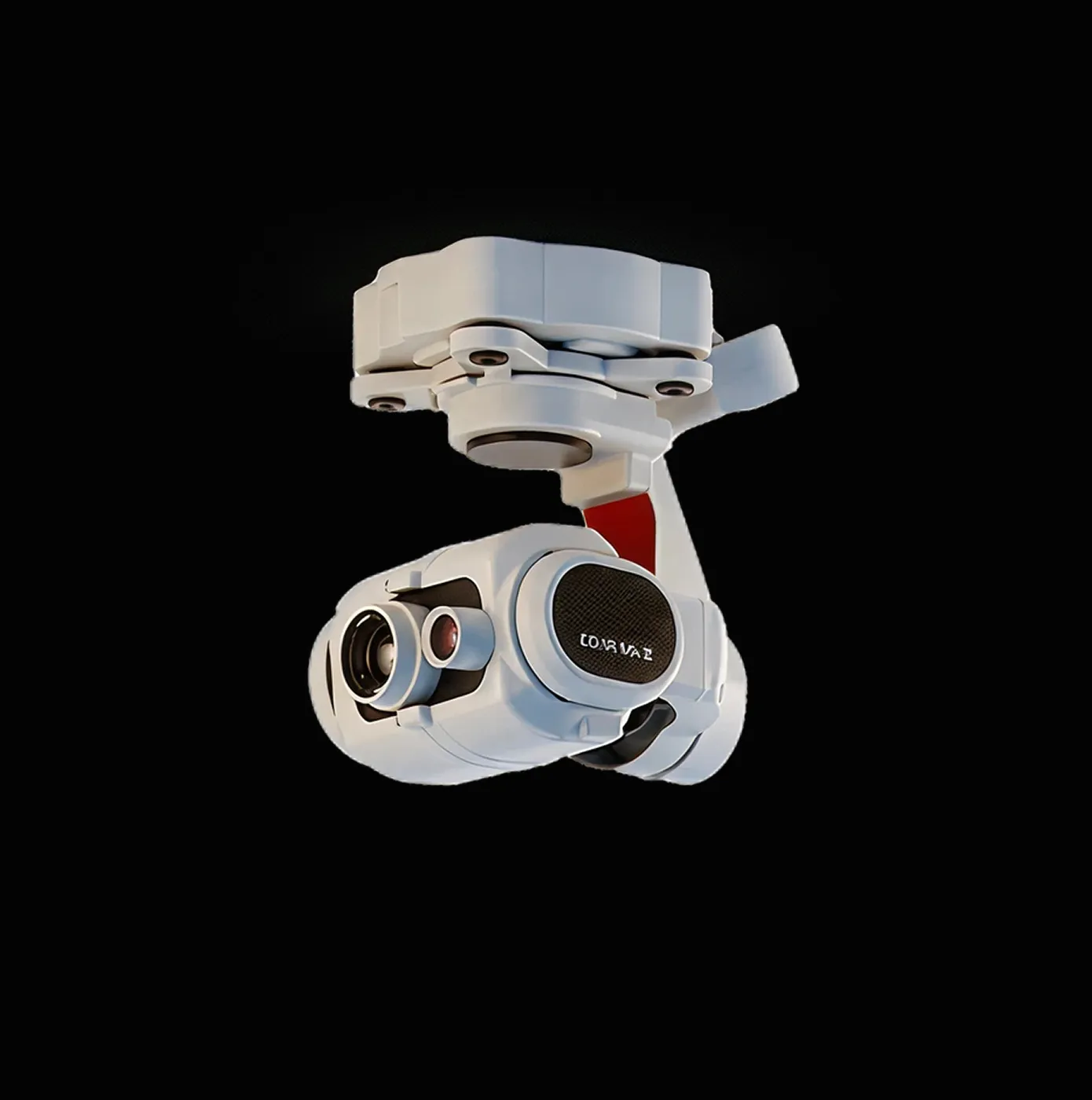

White compact camera gimbal with multiple lenses mounted on a black background.
Still Image Resolution: 13 MP (4192×3104) / 640×512
Zoom: 4× dig
Field of View: 58°/45° (13 mm), 32° (19 mm)
Video: 640×512@8.33

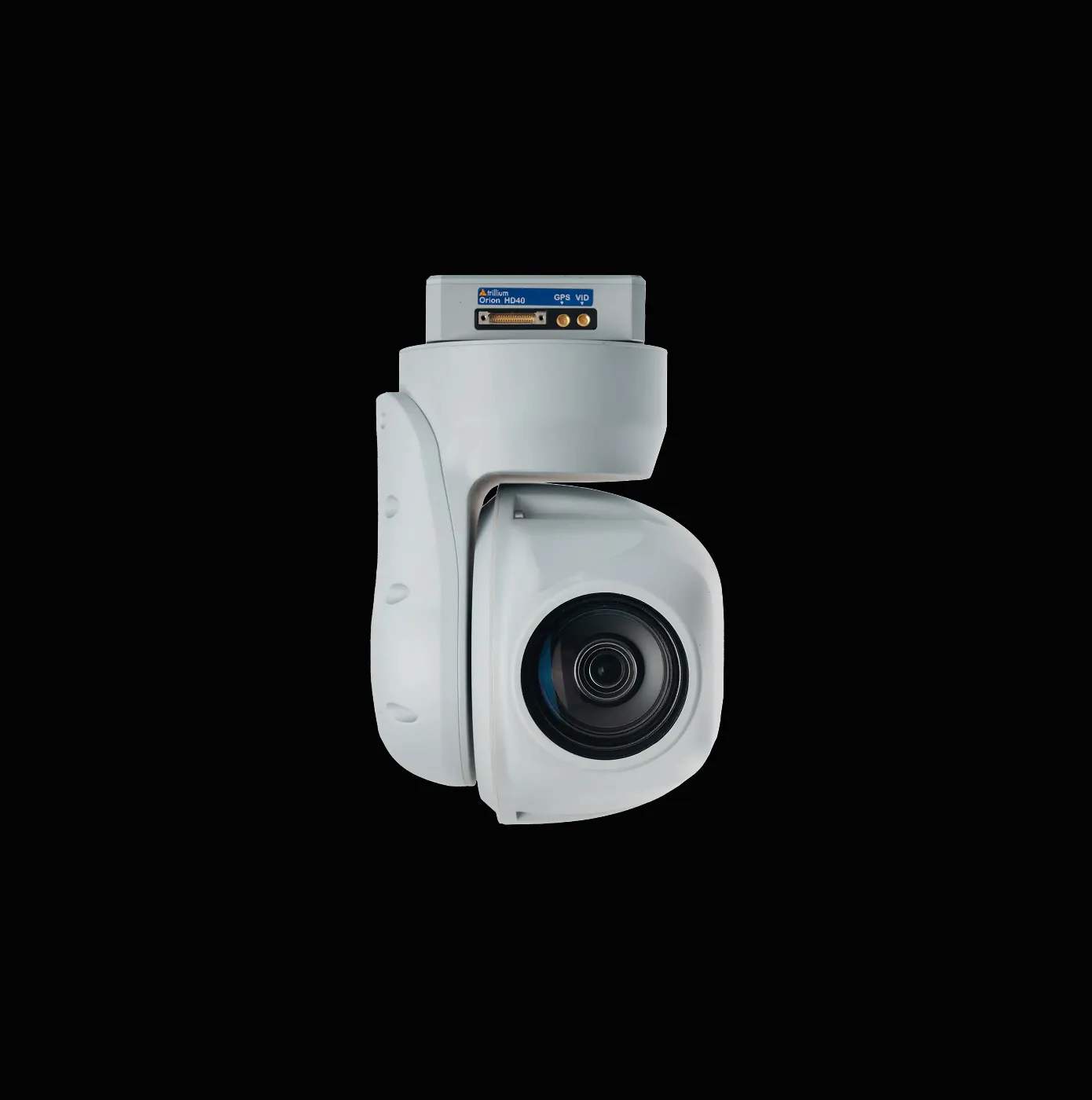

White security camera with a visible lens and a GPS module labeled Orion HD40 against a black background.
Still Image Resolution: 1280x720
Zoom: 33× / 66×
Field of View: 60°–2.1° (1.0° dig)
Order now

Expand capabilities. Extend mission impact

Skyranger R70 is built as an open and extensible platform, allowing seamless integration of new payloads, sensors, and mission systems.
This flexibility enables rapid capability expansion—whether adapting to new operational scenarios, integrating emerging technologies, or customizing configurations for specific defense and security needs. The result is a platform that evolves as fast as the mission landscape itself.
Order now

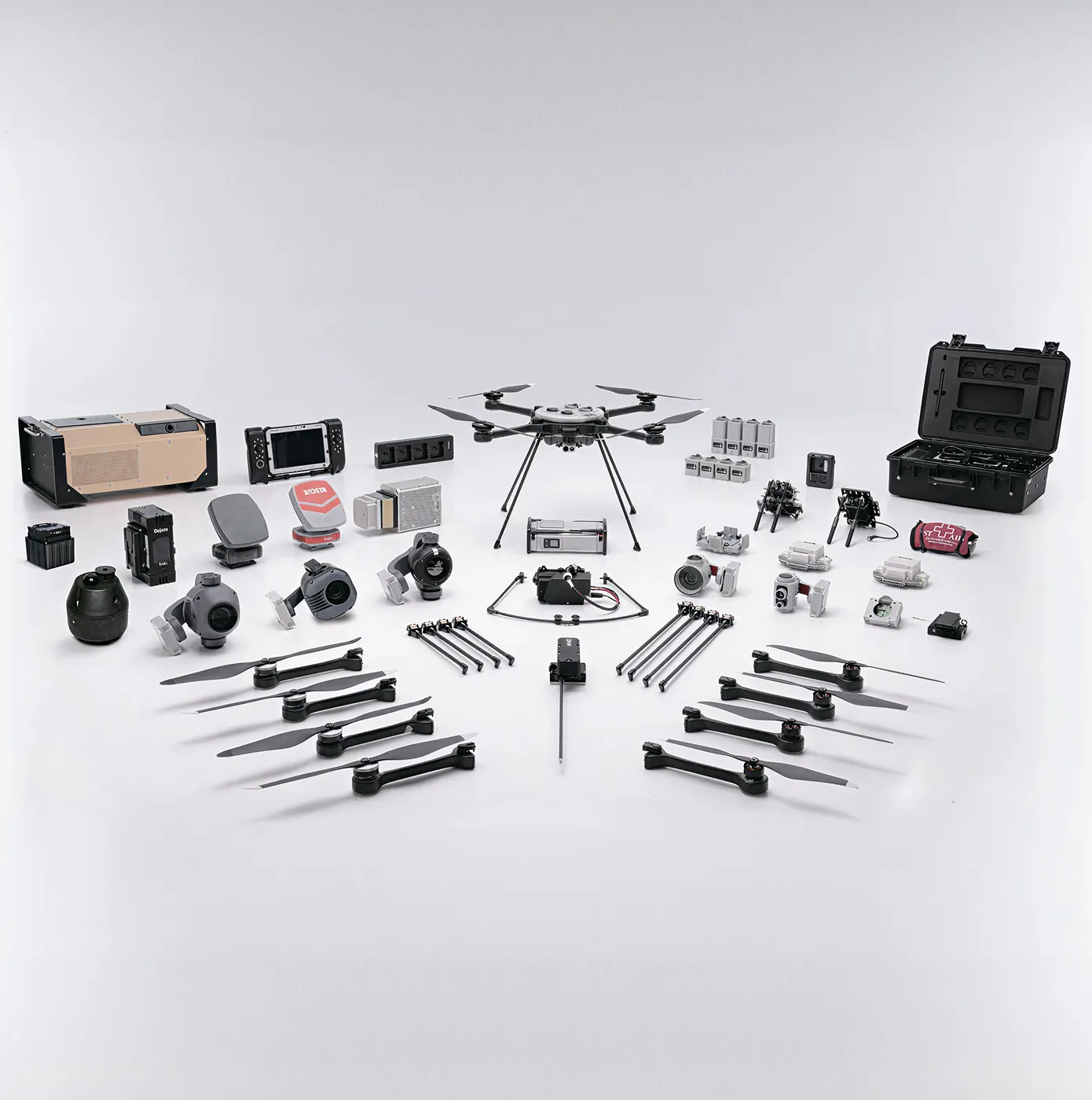

Disassembled drone kit with eight rotor arms, multiple cameras, batteries, electronic components, and a carrying case on a white background.

Intelligence at the edge, where it matters most

Equipped with advanced edge-of-network processing, Skyranger R70 delivers real-time object detection and classification directly onboard—reducing reliance on external connectivity.
This enables semi-autonomous operations and ensures mission continuity even in GPS-denied or communication-disrupted environments. Operators gain faster insights, reduced latency, and the confidence to operate in contested and degraded conditions.
Order now

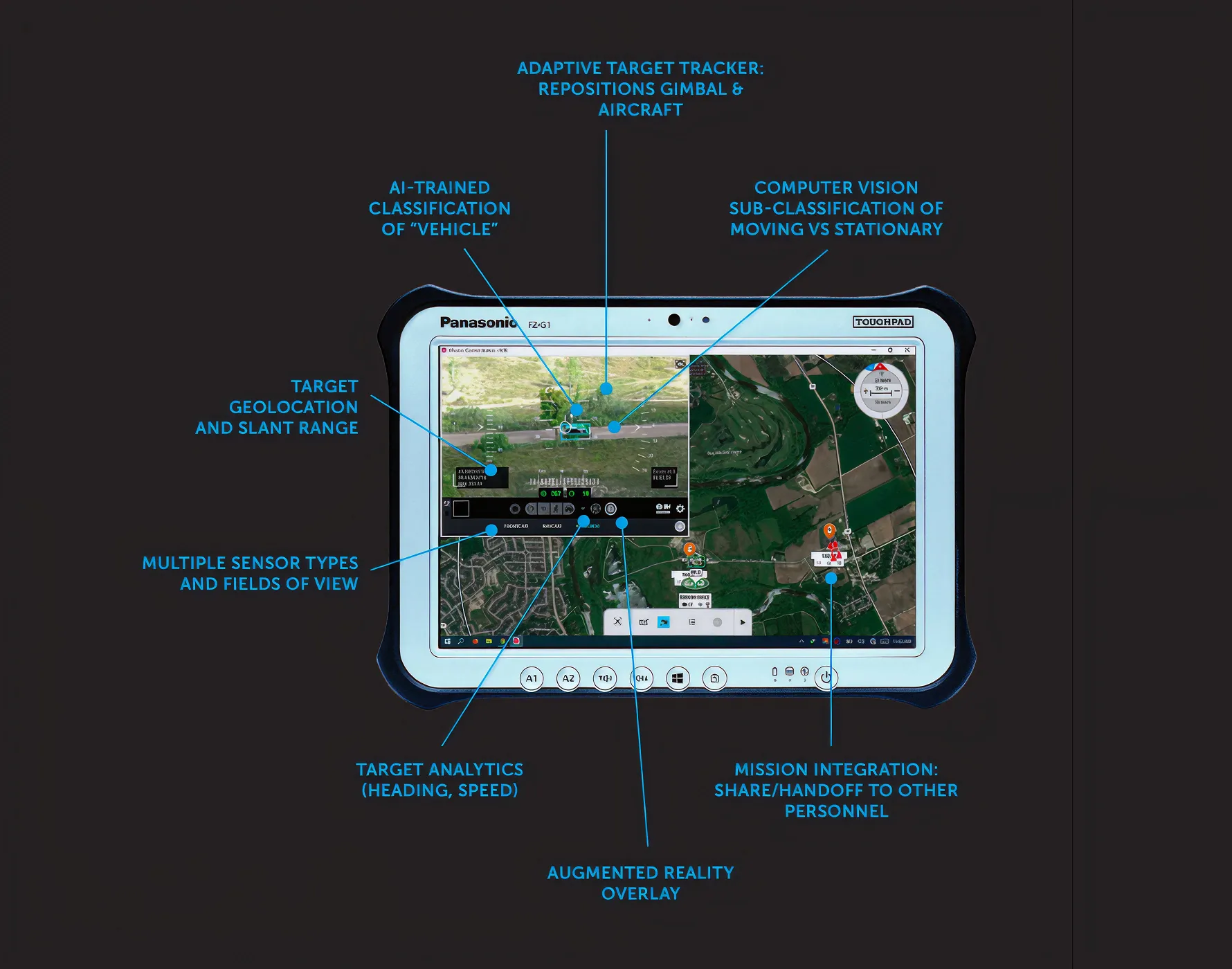

Panasonic Toughpad displaying a map interface with annotations highlighting features like AI vehicle classification, adaptive target tracker, computer vision for moving vs stationary objects, target geolocation, multiple sensor types, target analytics, augmented reality overlay, and mission integration for sharing data with personnel.

Specification

Dimensions & Weight

Height: 45 cm (17.7”)
Length: 1.35 m (53”, prop-to-prop)
Weight: 5 kg (11 lbs)

Payload Compatibility

Teledyne FLIR payloads
Hot-swappable
Custom via R70 PDK

Payload Capacity

Carry / Drop / Emplace (Osprey): up to 3.5 kg (7.7 lbs)

Day Imagers

StormCaster-T
HDZoom30
EO/IR MK-II
HD40-XV

Night Imagers

StormCaster-T
EO/IR MK-II

Still Image Resolution

StormCaster-T: 640×512
HDZoom30: 20 MP (5184×3888)
EO/IR MK-II: 13 MP (4192×3104) / 640×512

Zoom

StormCaster-T: 5× opt / 15× dig
HDZoom30: 30× / 60×
HD40-XV: 33× / 66×
EO/IR MK-II: 4× dig

Field of View

VIO: ± 10cm
GNSS: ± 1m

Video

StormCaster-T: 640×512@60
HDZoom30: 1080p60
HD40-XV: 720p30
EO/IR MK-II: 640×512@8.33

Video Metadata

Embedded STANAG 4609 KLV

Endurance

>40 min standard
up to 59 min with XL batteries

Performance

Max speed: 50 km/h (31 mph)
Ascent: 4 m/s
Descent: 3 m/s

Environment

−20 °C to +50 °C
Wind: 65 km/h sustained, 90 km/h gusts
IP-54
MIL-STD-810G

Data Link

915 MHz / 922 MHz / 2.2 GHz + others
Range: up to 8 km (5 mi)

Security

AES-256 encryption with physical key exchange

Launch Time

3–5 minutes

Want to have a test flight?

See how advanced AI, resilient connectivity, and mission-ready sensors perform in real-world conditions.

Book a demo

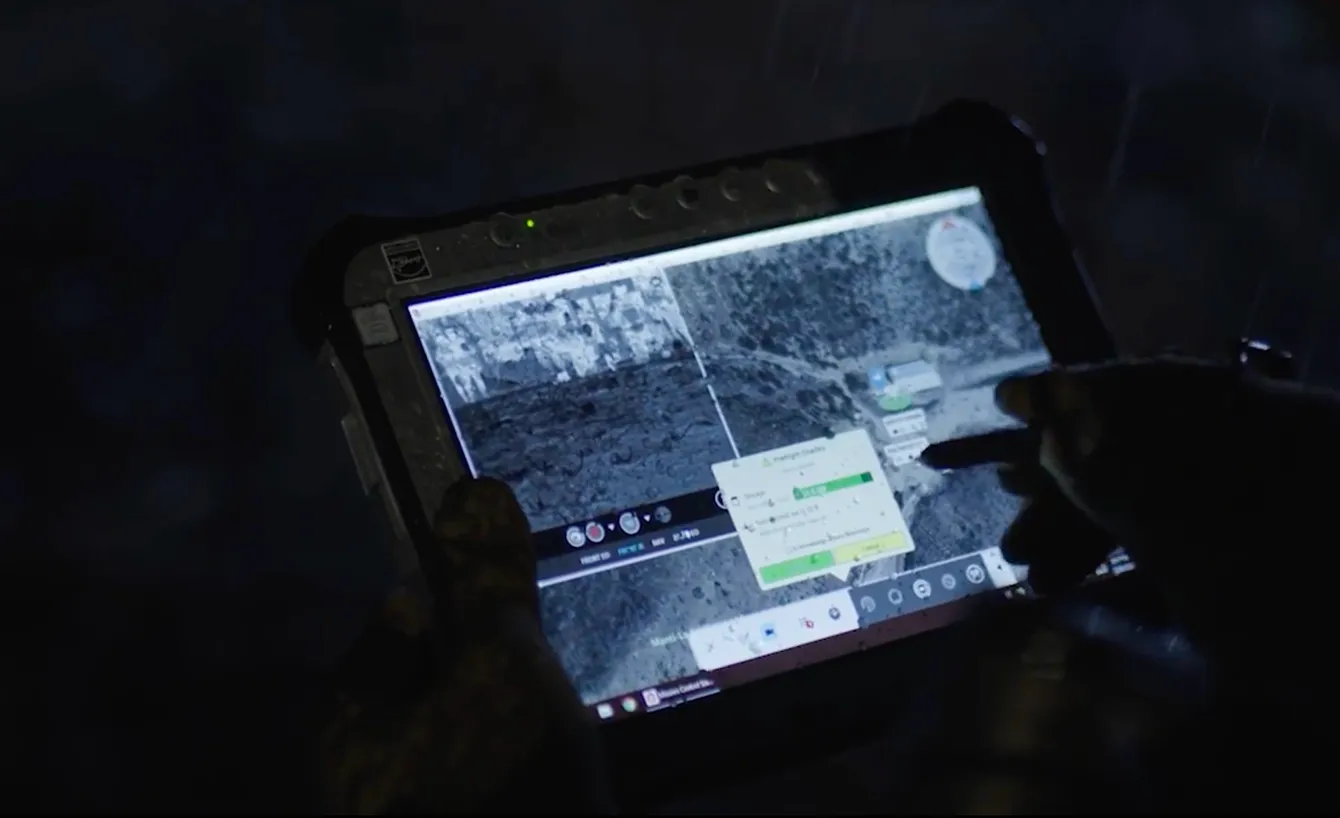

Person using a rugged tablet with stylus to interact with a digital map or satellite imagery interface in low light.

Ready
to order?

Get a drone built to perform in the most demanding environments.

Order now

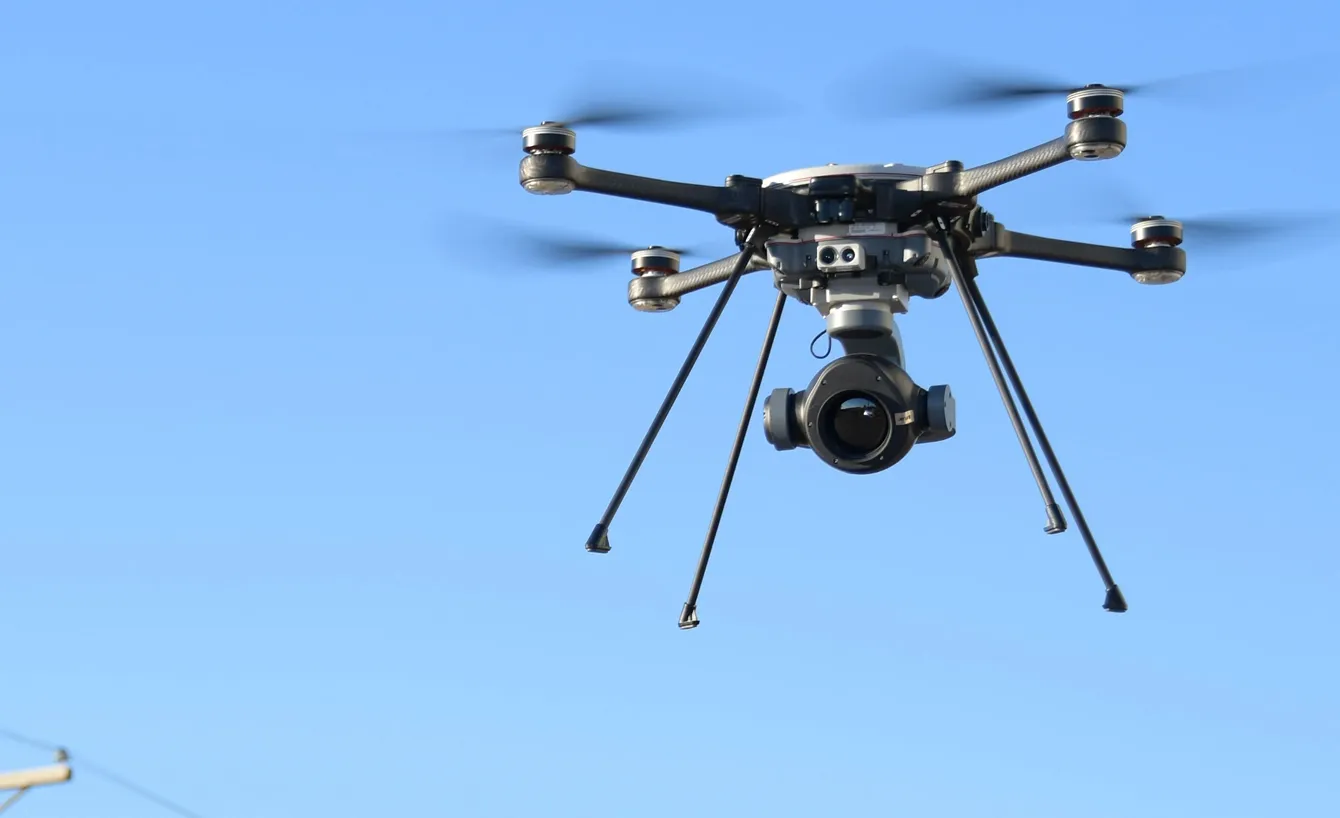

Close-up of a professional drone with a camera hovering against a clear blue sky.
